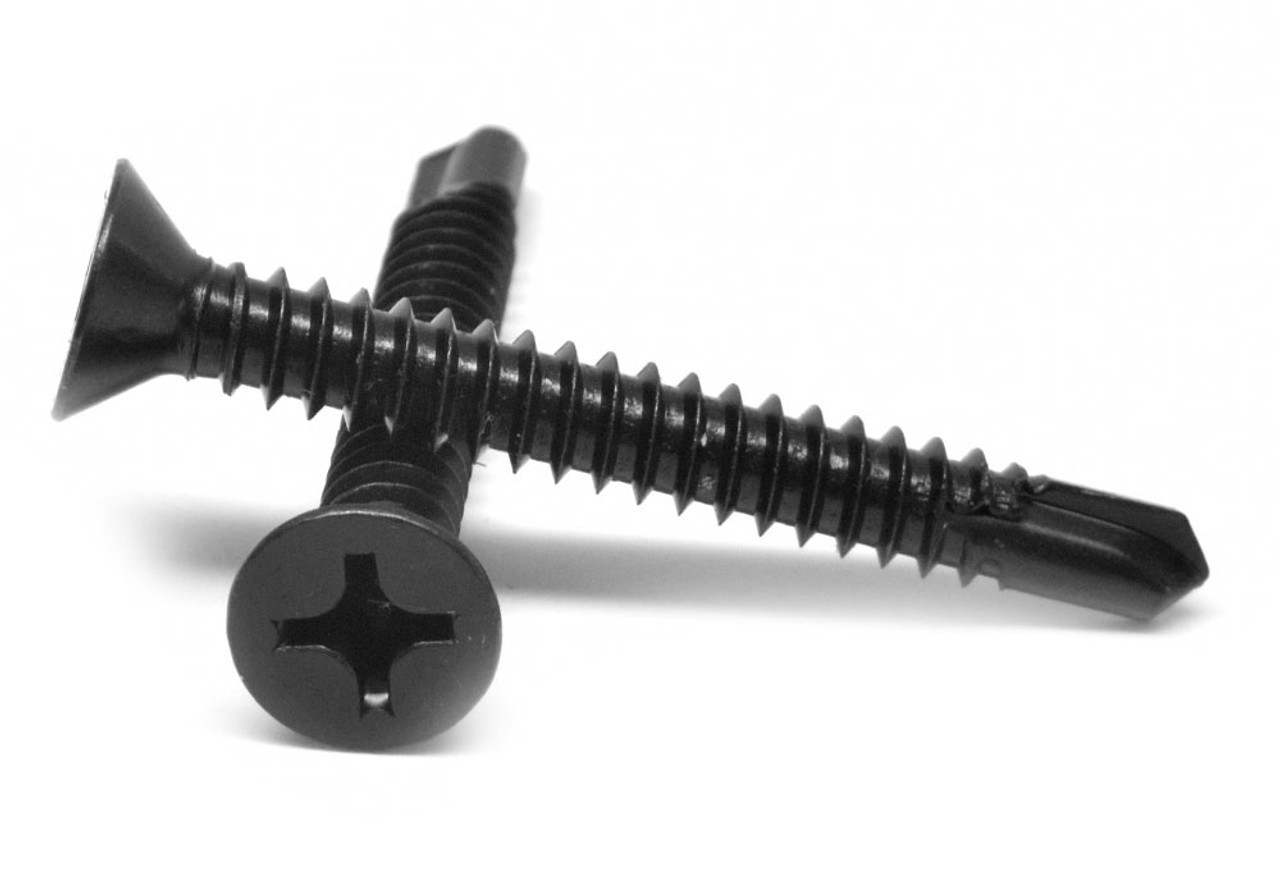

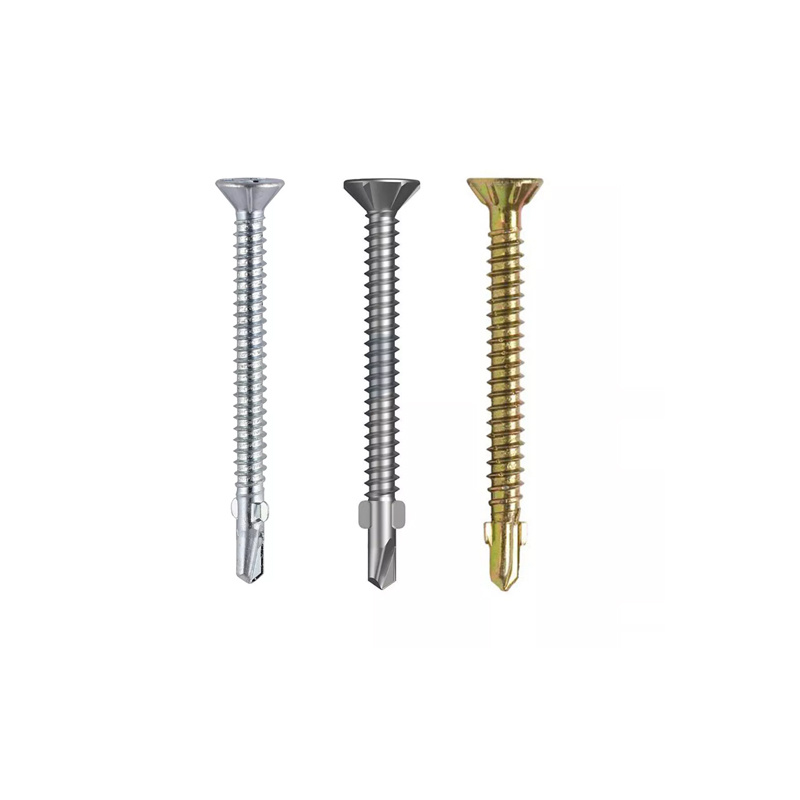

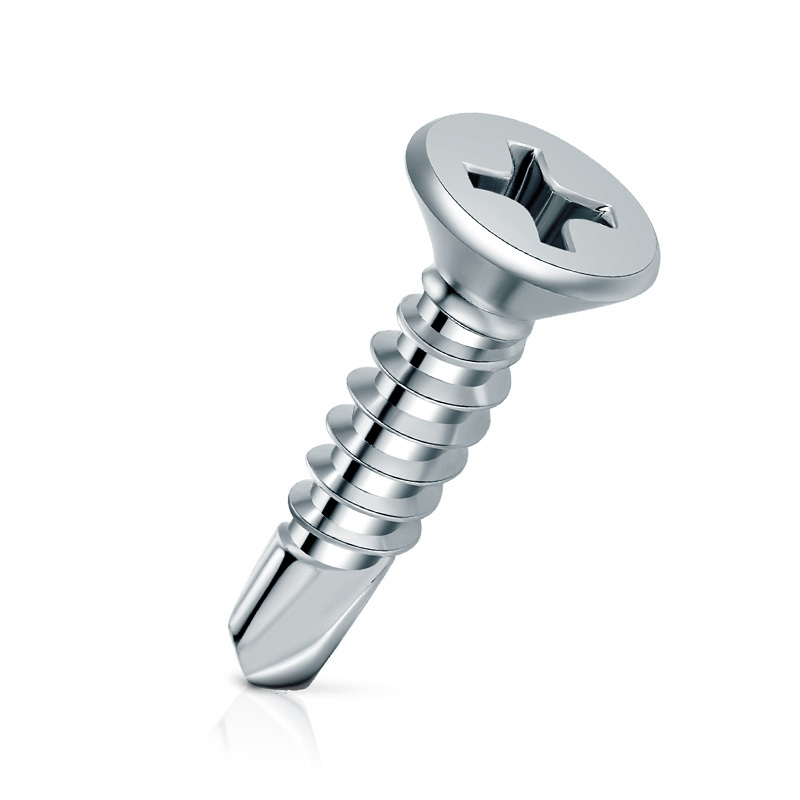

Flat Head Self-Drilling Screw

Categories：

Flat Head Screws

Views：

1001

Product Features

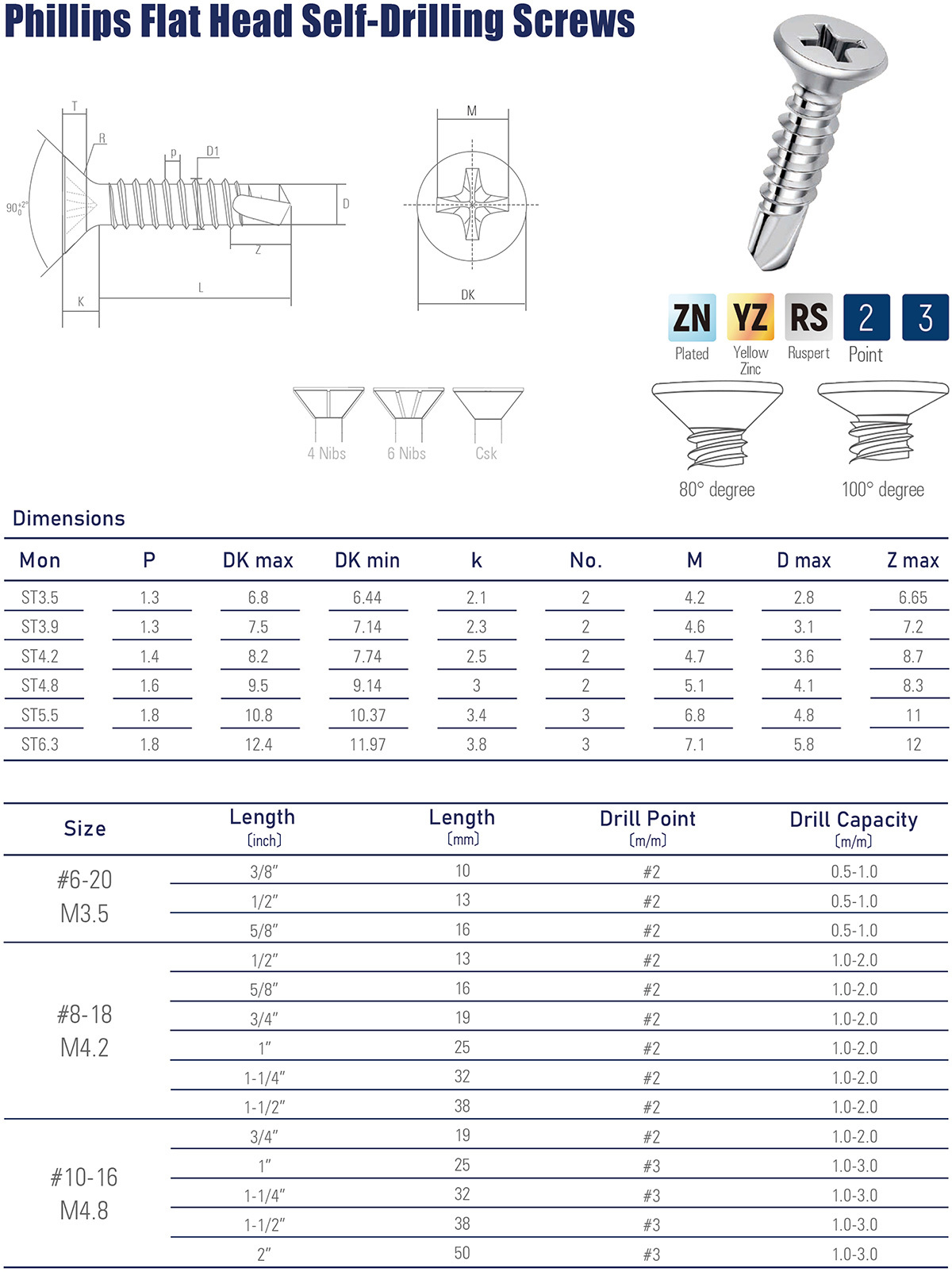

Thread size:#6, #7, #8, #10, #12, #14 (M3.5, M3.9, M4.2, M4.8,M5.5, M6.3) Length:1/4" to 6" (6mm to 152mm) Recess type:Phillip;Torx;Square;Pozi;Combo Recess Head type:Flat 6 nibs; Flat Head Thread type:ASD (coarse thread);BSD (general thread);CSD (fine thread); Point:Drill point #2, #3, #4, #5; Finish:Phosphate (grey or black); Zinc Plated (clear / white / yellow); Coating (Geomet, Dacrotized, Ruspert etc.); Drill capacity:Steel plate thickness 1.0mm to 10mm;

Online consulting

Product introduction
