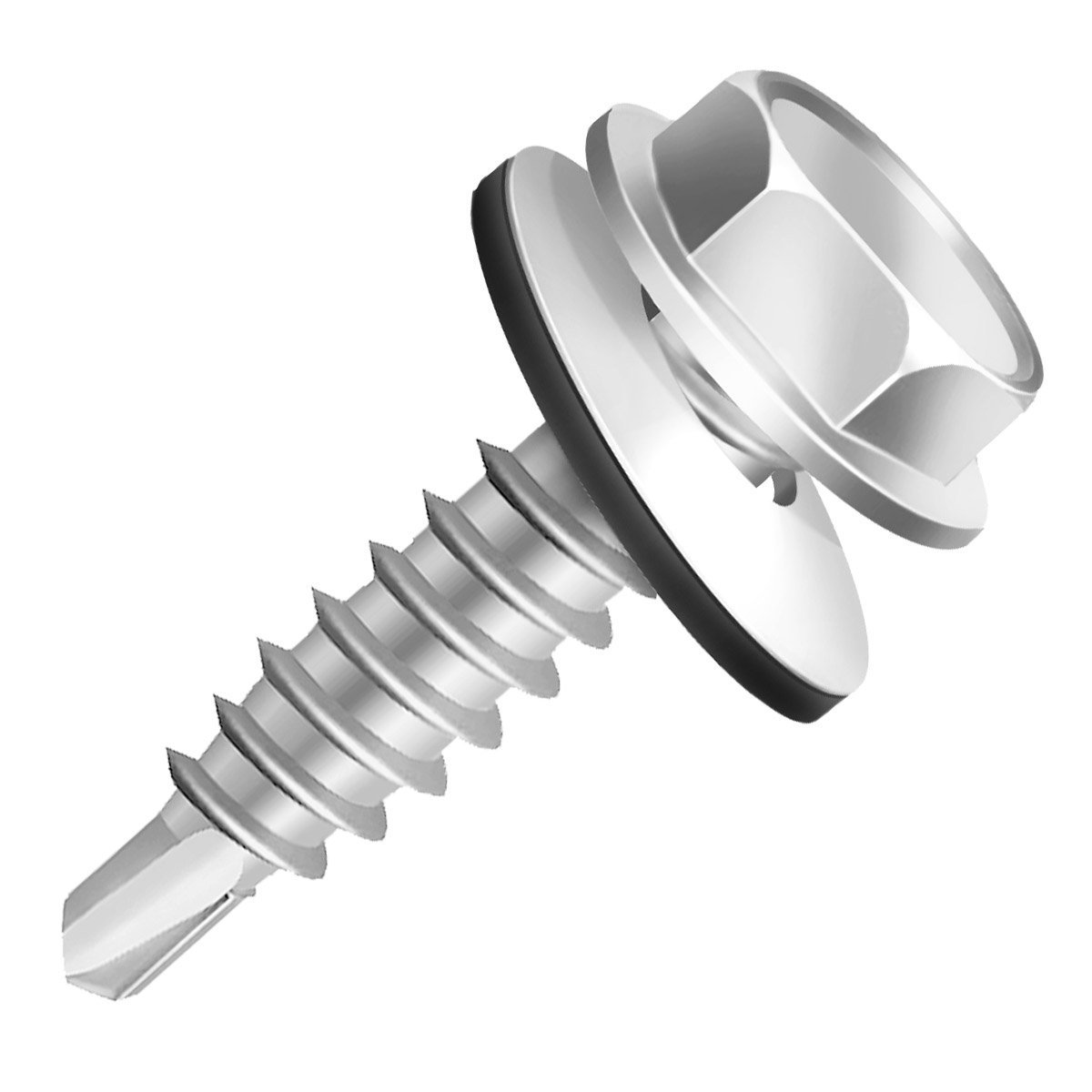

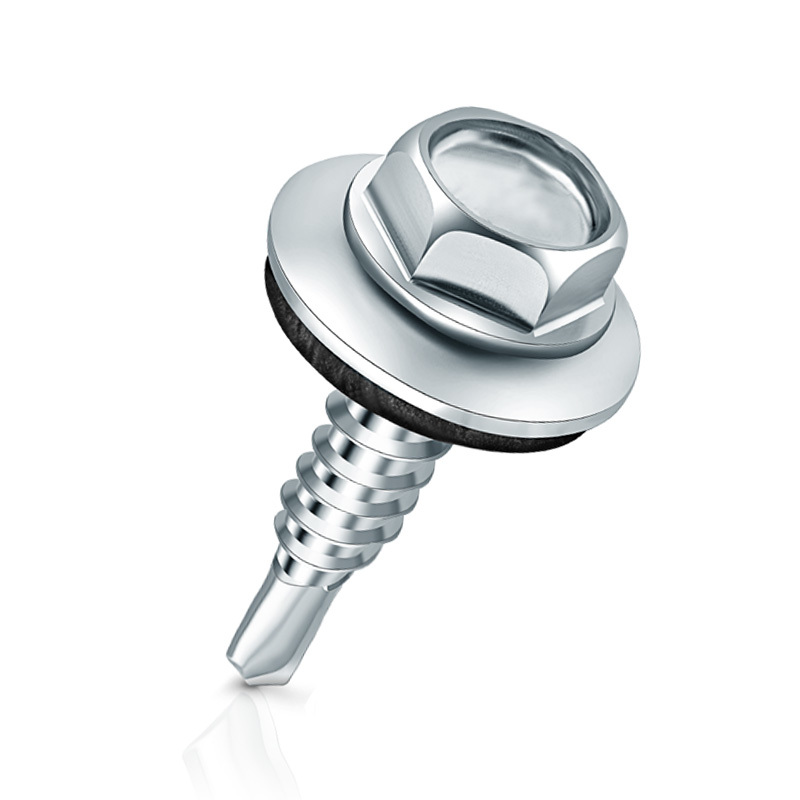

Hex Washer Head Self Drilling Screw With Reduced Drill Point

Categories：

Hex Washer Head Screws

Views：

1001

Product Features

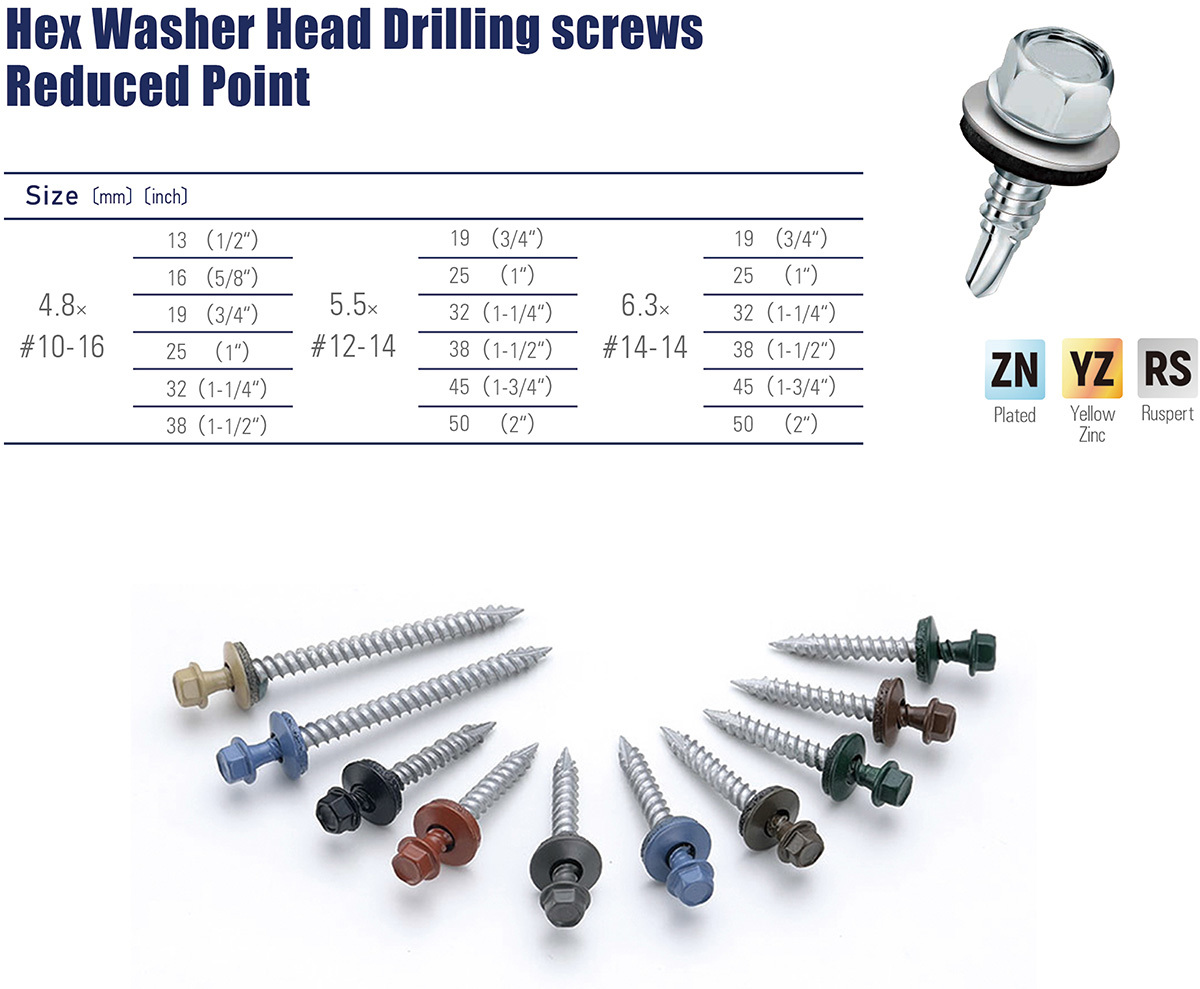

Thread size:#10, #12, #14 (M4.8, M5.5, M6.3 ) Length:3/4" to 12" (19 to 300mm) Recess type:Hex; Slot+Hex; Torx; Head type:Indented hex washer; Indented hex washer (high head); Slotted Indented washer head; Thread type:BSD (general thread);CSD (fine thread) with 1 slot Point:Drill point length from #2~#5; Reduced point;Needle Point Finish:Phosphate (grey or black); Zinc Plated (clear / white / yellow); Coating (Geomet, Dacrotized, Ruspert etc.) Drill capacity:Steel plate thickness 1.0mm to 10mm;

Online consulting

Product introduction
